HDSAFE Frameless Sliding Glass Door 3D Installation System

Modern architectural interiors increasingly require sliding door systems that combine structural stability, minimalist aesthetics, and efficient installation performance. The HDSAFE Frameless Sliding Glass Door System is engineered for high-end residential, commercial, and office applications, delivering precision movement, premium stainless steel hardware, and advanced installation efficiency.

This 3D installation system is designed to provide contractors, architects, distributors, and engineering teams with a comprehensive understanding of the structural configuration and installation methodology of frameless glass sliding door systems.

Professional Frameless Sliding Glass Door Solution

The HDSAFE frameless sliding system integrates tempered safety glass with precision-engineered stainless steel hardware to achieve:

Smooth and silent sliding operation
High structural stability
Minimalist frameless appearance
Long-term durability
Simplified installation process
Flexible OEM & ODM customization

The system is suitable for both light-duty interior applications and heavy-duty commercial architectural projects.

System Configuration

Sliding Track System

The top-mounted sliding track is manufactured from high-strength stainless steel or anodized aluminum alloy, providing superior load-bearing performance and operational stability.

Features

Precision-machined rail structure
Corrosion-resistant surface treatment
High load capacity
Smooth roller guidance
Reduced operational vibration

Available mounting options:

Wall-mounted installation
Ceiling-mounted installation
Concealed track integration

Precision Roller Assembly

The roller mechanism is one of the core components of the sliding system. HDSAFE utilizes high-performance bearing rollers engineered for continuous heavy-duty operation.

Advantages

Ultra-smooth sliding performance
Low operational noise
Anti-wear bearing structure
Stable glass movement
Long service lifespan

Optional soft-close damping systems are available for premium architectural projects.

Tempered Safety Glass Panel

The frameless glass panel is manufactured using architectural-grade tempered safety glass for maximum strength and safety compliance.

Available Glass Thickness

8mm tempered glass
10mm tempered glass
12mm tempered glass

Optional Glass Types

Clear tempered glass
Frosted glass
Laminated safety glass
Low-iron ultra-clear glass
Decorative customized glass

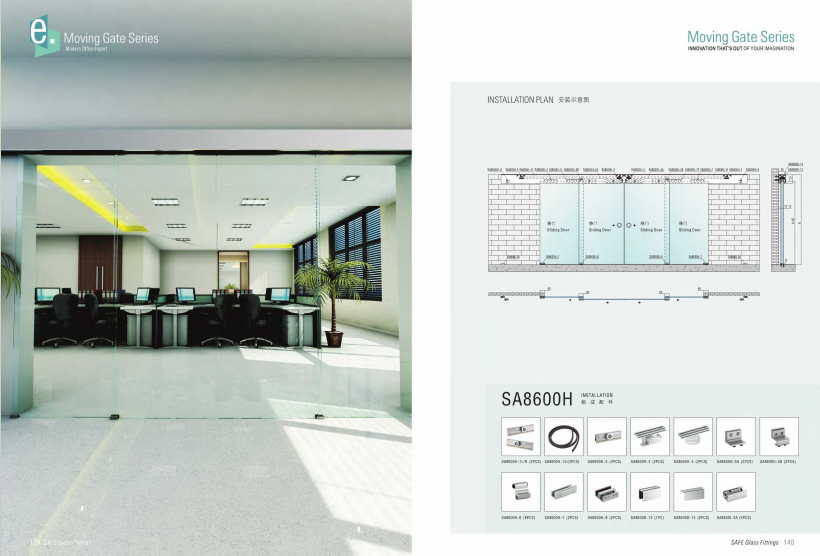

3D Installation Structure

The HDSAFE frameless sliding door system adopts a modular installation structure optimized for engineering efficiency and installation accuracy.

Step 1 – Structural Positioning & Track Alignment

The installation process begins with precise structural measurement and positioning.

Key considerations:

Wall flatness inspection
Ceiling load-bearing verification
Track horizontal calibration
Installation tolerance control

Accurate alignment ensures long-term operational stability and minimizes roller deviation.

Step 2 – Sliding Track Installation

The sliding rail is securely fixed to the structural surface using heavy-duty mounting accessories.

Installation Requirements

Precision leveling
Reinforced fixing points
Vibration reduction treatment
Expansion bolt stabilization

For commercial applications, reinforced installation structures are recommended.

Step 3 – Roller & Glass Assembly

The precision roller assembly is connected to the tempered glass panel using stainless steel glass clamps and fastening systems.

Engineering Features

Adjustable roller positioning
Anti-drop safety design
Load distribution balancing
Stable sliding guidance

All hardware components undergo strict tolerance inspection before assembly.

Step 4 – Glass Panel Suspension

The assembled glass panel is carefully mounted onto the sliding track system.

During installation:

Vertical alignment is calibrated
Roller balance is adjusted
Sliding resistance is tested
Structural stability is verified

The frameless system ensures smooth linear movement with minimal operational noise.

Step 5 – Floor Guide Installation

The floor guide system stabilizes the glass panel during operation and prevents lateral movement.

Benefits

Enhanced sliding accuracy
Improved operational stability
Reduced glass vibration
Long-term structural protection

Step 6 – Functional Adjustment & System Testing

Final installation procedures include:

Roller height adjustment
Sliding resistance calibration
Soft-close testing
Hardware tightening inspection
Safety verification

Every installed system is tested to ensure smooth operation and engineering-grade reliability.

Technical Advantages of HDSAFE Frameless Sliding Systems

Minimalist Architectural Design

Frameless structures create premium contemporary aesthetics for modern interiors.

Engineering-Grade Hardware

High-strength stainless steel hardware ensures durability under continuous use.

Quiet Sliding Performance

Precision bearing systems reduce operational noise significantly.

Flexible Customization

OEM & ODM customization available for:

Door dimensions
Hardware finishes
Glass specifications
Track configurations
Soft-close systems

Efficient Installation

The modular structural design improves installation efficiency and reduces labor costs.

Application Scenarios

The HDSAFE frameless sliding glass door system is widely used in:

Residential Projects

Luxury apartments
Villas
Modern homes
Walk-in wardrobes
Bathroom partitions

Commercial Projects

Office partitions
Conference rooms
Hotels
Retail stores
Shopping malls
Showrooms

Architectural Engineering Projects

High-end interior systems
Commercial building renovations
Customized glass partition systems

OEM & ODM Manufacturing Capability

As a professional glass sliding door hardware manufacturer, HDSAFE provides complete OEM & ODM production solutions for global distributors, contractors, and engineering clients.

Manufacturing Advantages

30+ years industry experience
Advanced CNC processing equipment
Strict quality management system
Professional engineering support
Stable export capability
Fast ODM development cycle

All sliding door systems can be customized according to project specifications and architectural requirements.

Conclusion

The HDSAFE Frameless Sliding Glass Door 3D Installation System represents the integration of modern architectural aesthetics, precision engineering, and professional installation efficiency. Designed for residential and commercial applications, the system delivers long-term operational reliability, elegant frameless design, and flexible customization capabilities for global projects.

For distributors, architects, contractors, and developers seeking premium frameless sliding door solutions, HDSAFE provides professional OEM & ODM manufacturing support with factory-direct advantages.
