What Is the Size of the Sliding Door Track?

Sliding door track size is one of the most important factors when designing or installing a sliding door system. The correct track dimensions directly affect door stability, smooth operation, weight capacity, and overall performance.

Whether for residential interiors, office partitions, commercial buildings, or frameless glass sliding doors, choosing the proper sliding door track size ensures long-term durability and safe operation.

At HDSAFE, we provide customized sliding door track systems for modern architectural and commercial applications worldwide.

Standard Sliding Door Track Sizes

Sliding door track sizes vary depending on:

Door type
Door weight
Glass thickness
Installation method
Number of panels
Application environment

Below are some common standard sliding door track dimensions.

Door Type	Common Track Width	Common Track Height
Single Sliding Door	40mm – 80mm	35mm – 60mm
Double Sliding Door	70mm – 120mm	40mm – 70mm
Frameless Glass Door	45mm – 100mm	40mm – 65mm
Heavy-Duty Commercial Door	80mm – 150mm	50mm – 100mm
Automatic Sliding Door	100mm – 200mm	80mm – 150mm

The exact size depends on project requirements and hardware specifications.

Factors That Affect Sliding Door Track Size

1. Door Weight

Heavier doors require larger and stronger tracks.

For example:

Lightweight interior doors may use smaller aluminum tracks
Frameless tempered glass doors require reinforced stainless steel systems
Commercial doors need heavy-duty load-bearing tracks

2. Glass Thickness

Glass sliding doors commonly use:

8mm tempered glass
10mm tempered glass
12mm tempered glass

Thicker glass panels require larger roller systems and wider track profiles for stability.

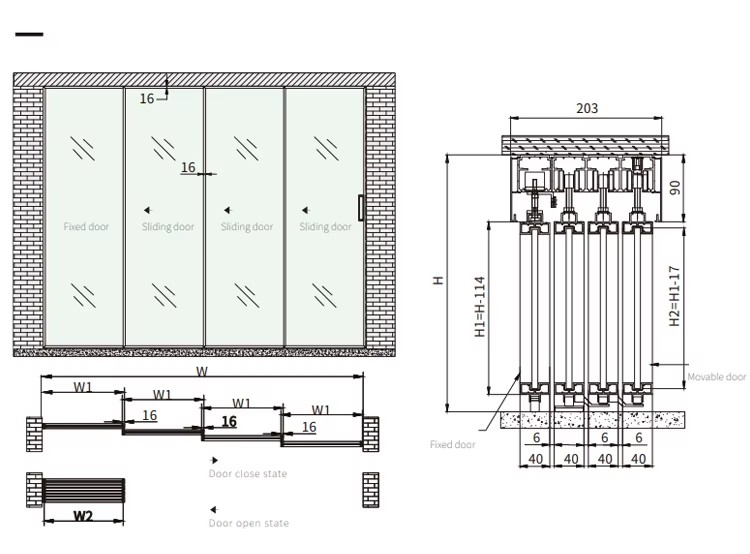

3. Number of Sliding Panels

Multi-panel sliding systems require wider tracks.

Examples

Single panel systems → single track
Double sliding systems → double track
Triple or quad systems → multi-channel tracks

Larger configurations increase overall track dimensions.

4. Installation Method

Track dimensions also depend on installation type.

Common Installation Options

Wall-mounted tracks
Ceiling-mounted tracks
Concealed tracks
Floor-guided systems

Concealed systems often require deeper installation spaces.

Typical Track Materials

High-quality sliding door tracks are usually made from:

Aluminum Alloy

Lightweight
Corrosion resistant
Modern appearance
Popular for residential use

Stainless Steel

Heavy-duty performance
Excellent durability
Luxury architectural appearance
Ideal for frameless glass systems

Powder-Coated Steel

Strong structural support
Commercial applications
Industrial-style designs

Frameless Glass Sliding Door Track Sizes

Frameless glass sliding doors usually require precision-engineered track systems.

Common Frameless Track Dimensions

Glass Thickness	Typical Track Width
8mm Glass	45mm – 60mm
10mm Glass	55mm – 80mm
12mm Glass	70mm – 100mm

These systems are designed to provide:

Smooth sliding performance
Quiet operation
High load-bearing capacity
Minimalist architectural appearance

Heavy-Duty Commercial Sliding Door Tracks

Commercial and engineering projects often require oversized track systems.

Applications

Office partitions
Hotel entrances
Conference rooms
Shopping malls
Automatic sliding systems

Heavy-duty systems support:

Larger door panels
Higher traffic usage
Long-term durability
Smart automation systems

How to Choose the Right Sliding Door Track Size

When selecting a sliding door track system, consider:

Factor	Recommendation
Door Weight	Choose reinforced tracks for heavy glass
Glass Thickness	Match track to glass specifications
Door Width	Wider doors need stronger rollers
Installation Style	Concealed systems need deeper tracks
Usage Frequency	Commercial use requires heavy-duty hardware
Design Style	Frameless systems require minimalist tracks

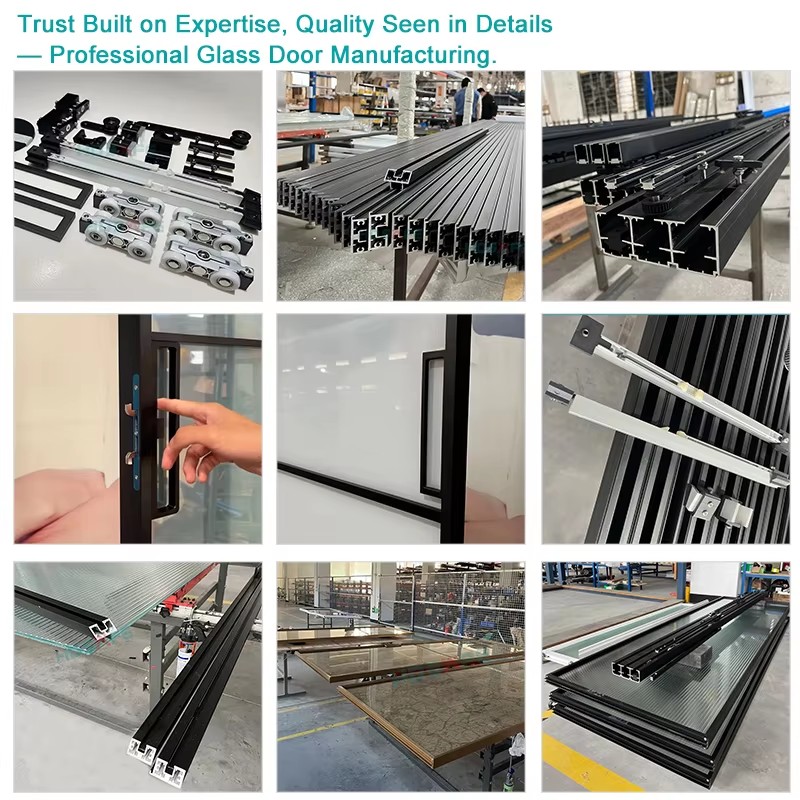

HDSAFE Customized Sliding Door Track Solutions

As a professional OEM & ODM manufacturer, HDSAFE provides customized sliding door track systems for residential and commercial projects worldwide.

HDSAFE Advantages

CNC precision manufacturing
Customized hardware dimensions
Heavy-duty load-bearing systems
Frameless glass door solutions
Soft-close sliding systems
Modern architectural hardware
Engineering project support

We support customized:

Track widths and heights
Stainless steel finishes
Roller systems
Multi-panel configurations
Soft-close hardware
Commercial sliding solutions

Conclusion

Sliding door track size depends on several important factors including door weight, glass thickness, installation type, and application requirements.

Choosing the correct sliding door track system is essential for ensuring:

Smooth operation
Long-term durability
Safe performance
Modern architectural aesthetics

Whether for frameless office partitions, luxury residential interiors, or heavy-duty commercial applications, HDSAFE provides professional customized sliding door track solutions designed for modern engineering and architectural projects worldwide.

Sliding doors are more and more widely used in home decoration. Sliding doors not only save space, but also have a certain decorative effect. Generally, the family will choose to install sliding doors in the kitchen or balcony, which is more practical and better than ordinary doors. The operation of sliding door mainly depends on the sliding door track, and the sliding door track size and types are various. How to choose the sliding door track size? I'll teach you how to choose the track size and install the sliding door. For the owners who have experienced the decoration of a new house once, whether it is a big or small thing, it has brought a lot of entanglements and troubles, and they have realized the difficulty in the decoration process. Then, when installing the sliding door track of the home, it is often one of the difficulties in most of the decoration process, especially for novices. Next, we will specifically understand the dimensions of the sliding door track and the steps for installing the sliding door track.

Sliding Door Track

Dimensions of sliding door track

1. Then, before selecting the sliding door track, you need to know what track the sliding door has. There are two kinds of tracks for sliding doors: tracks that can be pushed and pulled in both directions, tracks that can be pushed and pulled in one direction and folding sliding doors. Among the three types, the folding sliding door will save more space. If the consumer chooses to do the sliding door, the height of the door should be more than 207cm, so that the whole room will not appear too depressed. The best sliding door track size is about 80cm × 200cm, so the door with high height is stable and good-looking.

2. At present, many large-scale indoor decoration units need to install sliding door rails. Generally, these owners may want to install High-size sliding door rails, so they should pay attention to some matters. Because the door is very high, and if it is often pushed and pulled, the door will be unstable when it is tall, which will more easily lead to the door falling off and other phenomena. Therefore, consumers should pay great attention to the selection of the material of the sliding door. Sliding doors of different materials have different effects, but it is better not to choose fully transparent glass, which is easy to cause light pollution.

Steps for installing sliding door rail

Step 1:Generally speaking, the height and width of the track box on the upper part of the sliding door must be 13cm and 10cm, just like the curtain box. The track can be installed in the track box to hang the sliding door on the track. When the height of the door is less than 1.95M, it makes people feel very depressed. Therefore, the height of the sliding door should be at least 195 + 12 = 207cm.

Step 2:The general size of sliding door is about 80 × In the case of 200 cm, the sliding door will be relatively stable and very beautiful under the structure of this size. Therefore, the ratio of width and height of the sliding door should be close to the gold size. The sliding door from the ground to the top shall be used with caution. Because the swing range is too large when pushing and pulling, the sliding door is easy to deform over a long period of time, and the deformed rear door cannot be opened, which means that it is irreparable and unusable.

Step 3:When installing the track of sliding door, firstly fasten the upper track. How to use gravity cone to hang 3 points on both sides of the upper track and the middle point, and then draw 3.3 points on the ground with oil pen. Install the upper rail, and then put a hanging hammer to the ground against the center point of the upper rail, and put vertical lines on both ends of the rail. The lower rail is fixed at these three points to ensure that the upper and lower rails are completely parallel, and the sliding door is pushed and pulled in the best state.

Sliding Door Track

Advantages of sliding door

Block the line of sight. The transparency of materials is different, which can block the line of sight to varying degrees.
Proper sound insulation. The insulating glass with good quality has better sound insulation effect.

No space. The sliding door greatly facilitates the space division and utilization of the living room. Its reasonable push-pull design satisfies the compact order and rhythm of modern life. The movement and space also become larger and smaller with the separation or combination, and become more flexible and changeable with the subjective will.

Enhance privacy and space flexibility. Transparent glass bathroom rooms are common. In order to take care of the privacy of life, the entrance of the area can be covered by a movable sliding door.
