Can a top-hung door support heavy glass?

This is one of the most critical questions for architects and project managers. The short answer is: Yes, absolutely—provided the system is engineered correctly.

As a manufacturer with 30 years of experience, we have designed HDSAFE systems to carry significant loads. Here is the technical breakdown of how a top-hung system manages heavy glass.

1. The Engineering: How Weight is Managed

In a top-hung trackless system, the entire load is suspended. To support heavy glass (such as 12mm tempered or laminated acoustic glass), the system relies on tensile strength and load distribution.

2. Heavy-Duty Hardware Specifications

Supporting heavy glass isn't just about the track; it’s about the rollers. For "Heavy Duty" ratings, we focus on:

Four-Wheel Hangers: Instead of two wheels, we use four high-performance rollers per hanger to distribute the weight across more surface area of the track.
Precision Bearings: We use carbon steel or stainless steel ball bearings encased in high-density POM (polyoxymethylene) for smooth, silent movement under high pressure.
Clamping Power: For frameless heavy glass, our glass clamps utilize high-friction rubber gaskets that "bite" the glass, ensuring it cannot slip even at weights exceeding $100\text{kg}$.

3. Critical Factors for Success

While the door hardware can support the weight, the installation environment must be equally strong.

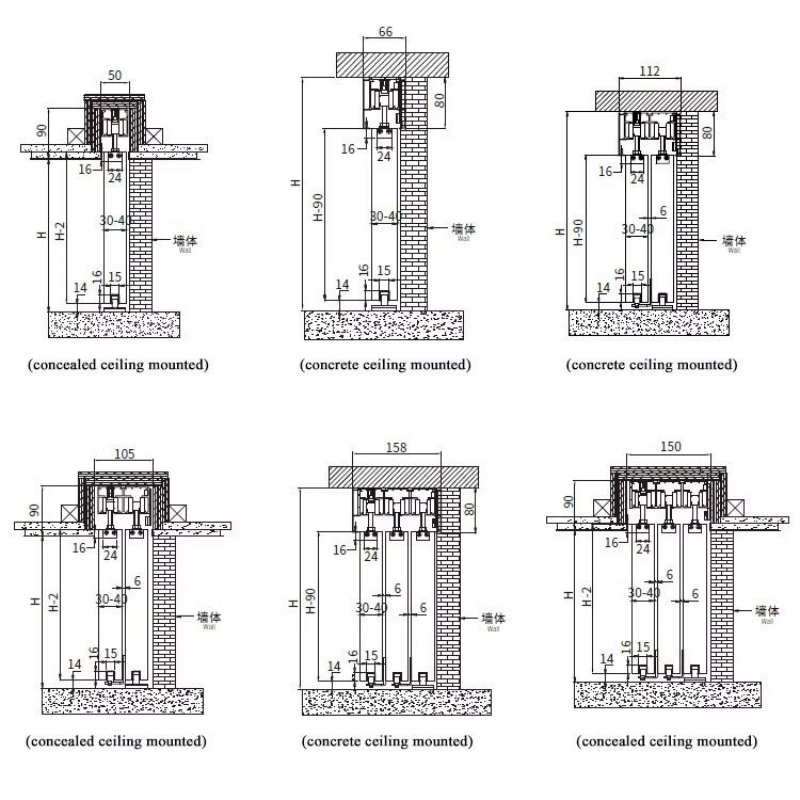

A. The Structural Header

A top-hung door is only as strong as what it is attached to.

Ideal: Concrete beams or structural steel C-channels.
Acceptable: Solid timber lintels (minimum 100mm thickness).
Prohibited: Drywall or suspended ceiling grids without internal reinforcement.

B. Safety Factor (Margin of Error)

At GlassDoorFactory, we apply a Safety Factor of 2.0. If our system is rated for $150\text{kg}$, it has been laboratory-tested to withstand a static load of $300\text{kg}$ without mechanical failure.

4. Comparison: Standard vs. Heavy-Duty Systems

Feature	Standard Trackless	HDSAFE Heavy-Duty
Max Glass Weight	Up to 60kg	Up to 150kg+
Glass Thickness	8mm	10mm - 12mm / Laminated
Track Profile	Slim (1.5mm wall)	Reinforced (3.0mm wall)
Application	Residential Closet	Commercial / High-End Villa

Conclusion

A top-hung door is actually preferred for heavy glass in luxury designs because it eliminates the friction and "grinding" often felt in bottom-track systems when they get dusty. As long as you source from a factory that provides structural-grade aluminum and high-cycle rollers, a top-hung system is perfectly safe and incredibly durable.
