Introduction
As a premier commercial glass door manufacturer, Glass Door Factory recently completed the bulk production and supply of high-end frameless glass railing systems for a newly developed luxury residential complex.

The modern architectural design required an outdoor balustrade solution that maximizes panoramic views while strictly adhering to local structural safety codes. Here is an engineering breakdown of how our factory delivered the ideal balance between minimalism and uncompromising structural security.

Project Overview & Specifications

* Product Supplied: Frameless Glass Railing Systems (Heavy-Duty Base Shoe Type)
* Application: High-rise balconies, outdoor patios, and rooftop terraces
* Glass Specification: 12.76mm (6mm+0.76PVB+6mm) High-strength tempered laminated safety glass
* Hardware Material: Marine-grade anodized aluminum base shoe channels with protective top caps
* Compliance Target: Impact resistance and wind-load capacity for high-altitude coastal environments

The Challenge: Unobstructed Views vs. Strict Safety Codes
Modern residential developments heavily prioritize natural light and seamless indoor-outdoor flow. For this high-rise project, the architects specified a completely frameless aesthetic—meaning no vertical posts or obstructive metal frames to block the landscape.

However, high-altitude balconies and rooftop terraces face extreme wind loads and strict building safety regulations. The engineering challenge was ensuring that a completely frameless glass panel could withstand high-velocity wind pressure and accidental impacts without any structural shifting.

Our Manufacturing & Engineering Solution

1. High-Strength Tempered Laminated Glass Production
To ensure maximum safety, our factory utilized premium-grade tempered laminated glass. Unlike standard glass, laminated glass consists of two layers of precision-cut tempered glass bonded together by a durable Polyvinyl Butyral (PVB) interlayer.

* The Safety Factor: In the highly unlikely event of a breakage, the glass fragments stick securely to the PVB interlayer, remaining upright within the base channel and preventing any fall hazards.

2. Heavy-Duty Aluminum Base Shoe System
The structural core of any frameless railing is the bottom channel. We supplied a heavy-duty structural aluminum base shoe system.

* Engineering Advantage: This system clamps the glass securely at the base, distributing weight and pressure evenly across the concrete slab.
* Corrosion Resistance: Finished with a thick anodized layer, the aluminum hardware is completely rust-proof, making it perfect for exposed outdoor terraces and balconies prone to heavy rain or coastal moisture.

3. Factory Pre-Fit Testing for Zero On-Site Delays

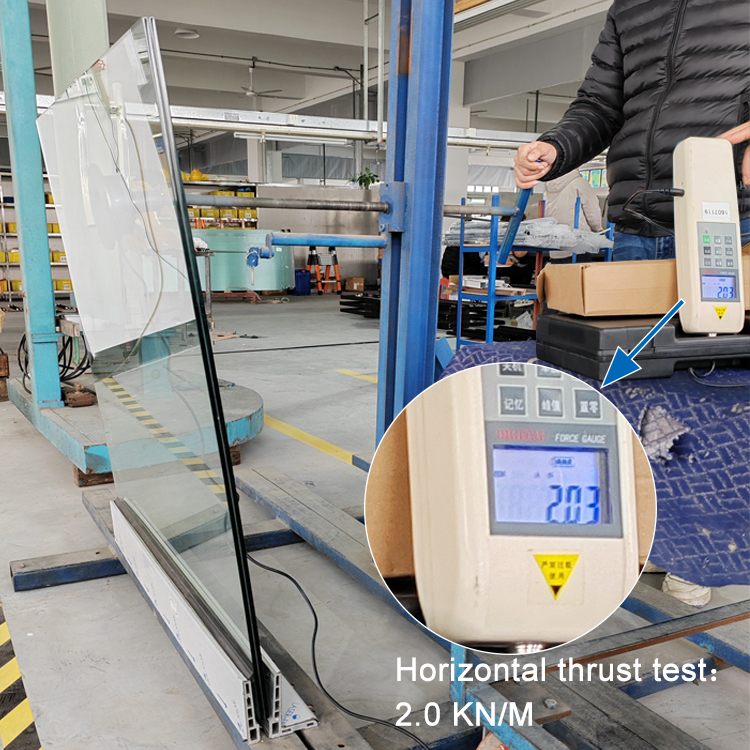

To prevent common installation bottlenecks on the construction site, our QC team conducted a trial assembly right on the factory floor. We tested the alignment of the aluminum shoe tracks, the wedge clamping mechanism, and the glass alignment. This strict factory process guarantees that the general contractor can install the system rapidly without mismatched parts or structural tolerances.

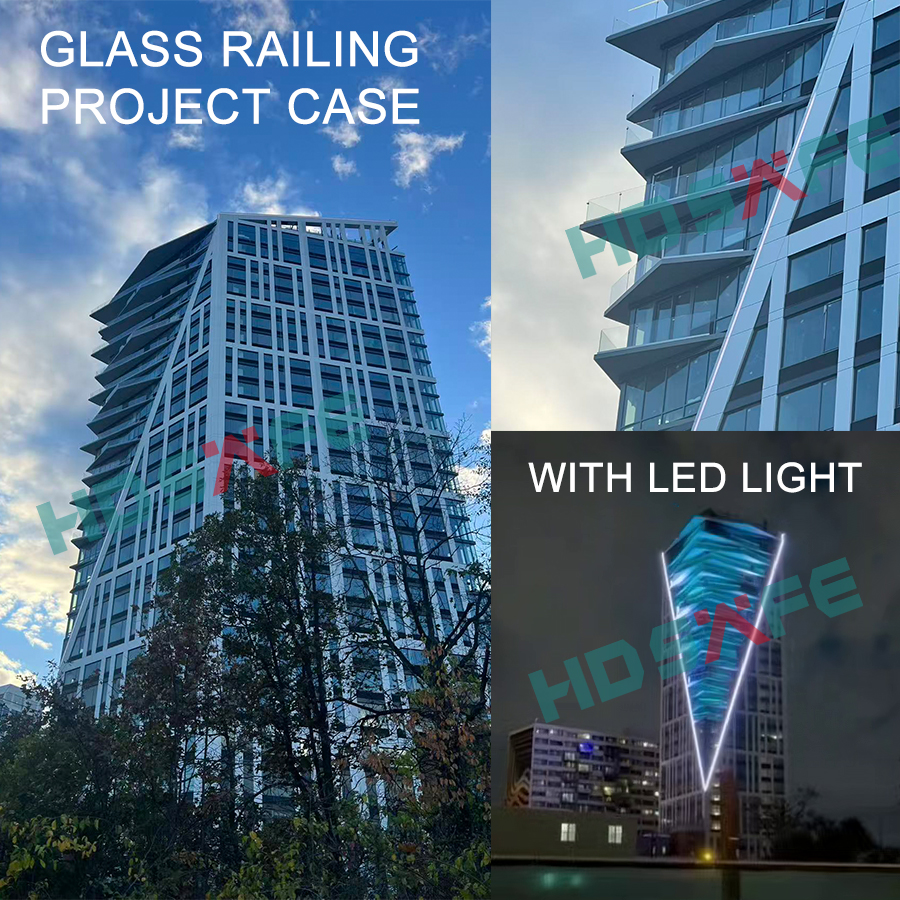

The Result: Seamless Luxury and Rapid Installation
The shipment was packed into reinforced, export-standard wooden crates and delivered directly to the project site with zero damage.

The final installation provided the luxury development with clean, continuous glass lines that significantly enhanced the property’s premium aesthetic and market value. Most importantly, the system successfully passed all local on-site load tests, proving that architectural minimalism does not have to compromise structural integrity.
